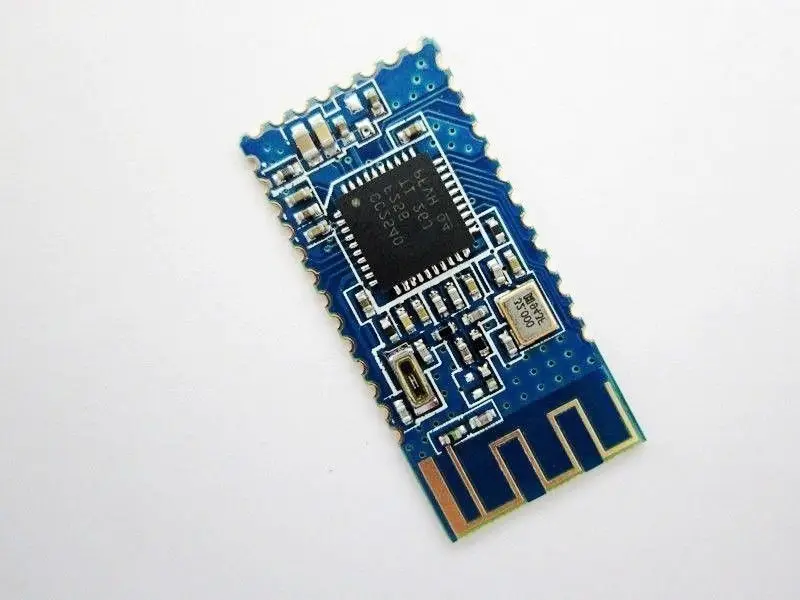

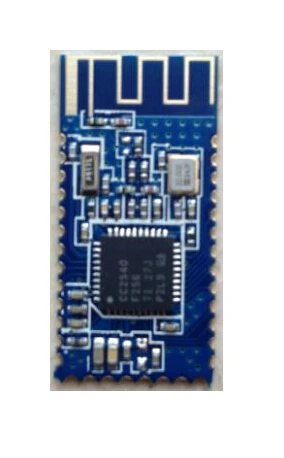

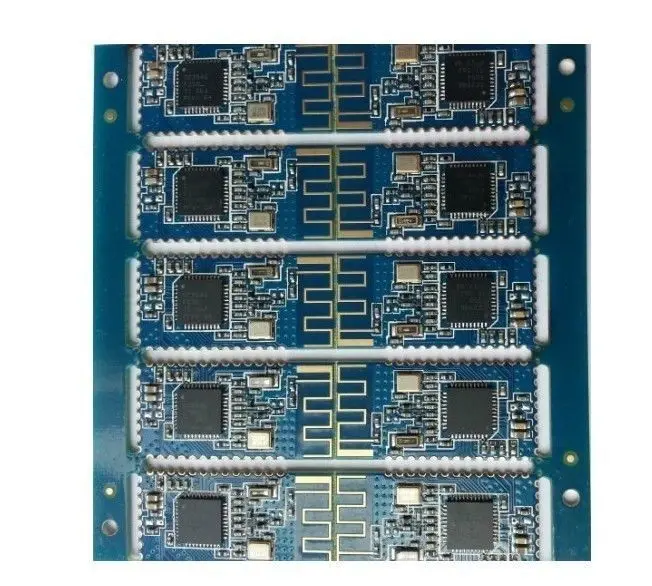

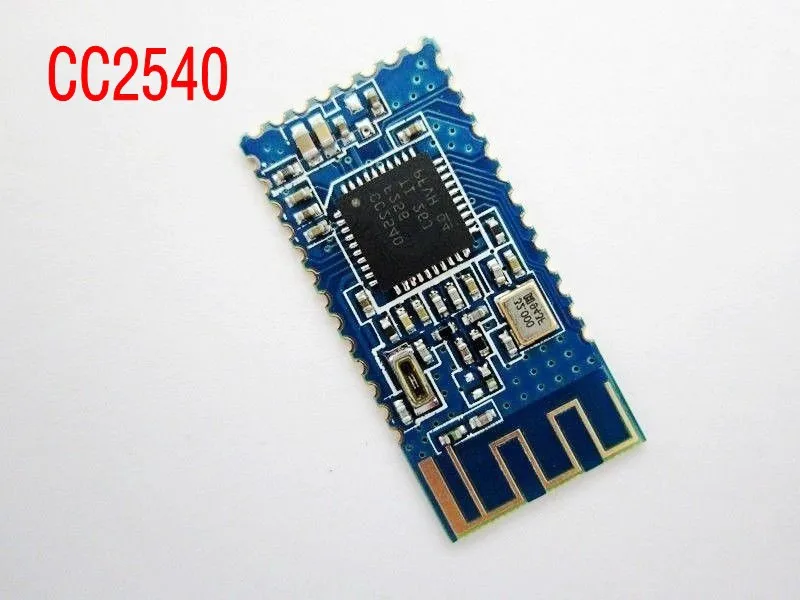

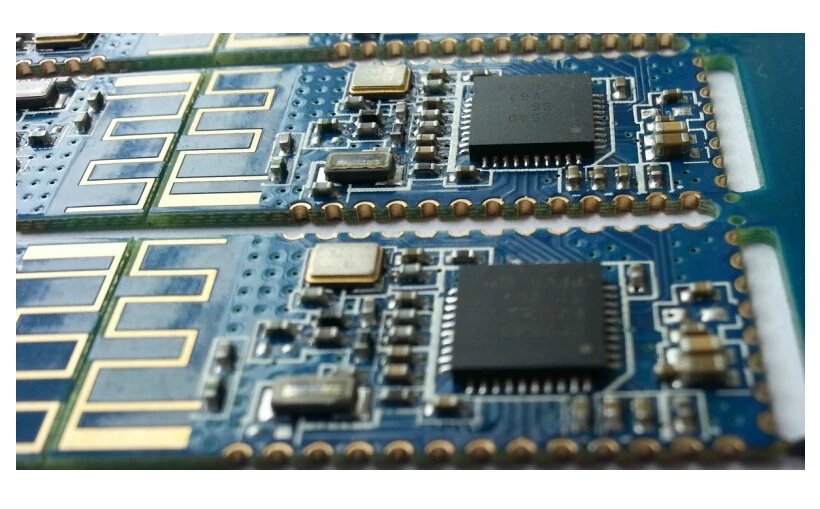

5pcs/lot HM-10 CC2540 4.0 BLE Bluetooth to UART Transceiver Module Central Peripheral

every parcel will be sent with tracking number.


package included: 5 pcs new


pls ask me if you want to buy more, i can give you a big discount.


if you can't choose freeshipping , that is because of over weight, you can just ask me i help you change it !

Russian buyers must tell me your full name !

4.0 BLE bluetooth to uart transceiver Module Central Peripheral HM-10 CC2540

•100% Brand new and high quality.
•Interface: Dual USB 2-Port
•support Central and Peripheral mode switch, modify by AT commander
support Remote control mode, remote device can control PIO pin or modify settings by AT commander when Connected. (such as Iphone4s/5 ipad, Note2 etc.)Product parameters
.Working frequency:2.4GHz ISM band
.Modulation method: GFSK(Gaussian Frequency Shift Keying)
.RF Power:≤4dBm, Class 2
.Sensitivity:≤-84dBm at 0.1% BER
.Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps
Synchronous: 1Mbps/1Mbps(Max)
.Security: Authentication and encryption
.Service: Bluetooth SPP(Master & Slave)
.Power:+3.3VDC 50mA
.Working temperature:–5 ~ +65 Centigrade
.Size:26.9mm x 13mm x 2.2 mm
.Flash:256Kb
Additional introduction:
HM-10 is Bluetooth V4.0 BLE version. Use TI Chip. HM Bluetooth module use CSR BlueCore or TI CC2540, Master and slave roles
in one, transmission version and remote control version and PIO state acquisition functions in one, Support the AT command modify
module parameters, Convenient and flexible. Transmission version can be used to transmit data between two Bluetooth devices.Remote
Control version can be used to Control PIO ports output high or low level without any other MCU.
AT Commanders (new version V542)
AT                         (Test command)AT+BAUD           (Query/Set Baud rate)AT+CHK             (Query/Set parity)AT+STOP            (Query/Set stop bit)AT+UART            (Query/Set uart rate,parity, stop bit)AT+PIO                (Query/Set PIO pins status Long command)AT+PIO                (Query/Set a PIO pin sttus Short command)AT+NAME           (Query/Set device friendly name)AT+PIN                (Query/Set device password code)AT+DEFAULT     (Reset device settings)AT+RESTART     (Restart device)AT+ROLE            (Query/Set device mode, Master or Slave)AT+CLEAR          (Clear remote device address if has)AT+CONLAST    (Try to connect last connect succeed device)AT+VERSION     (Show software version information)AT+HELP             (Show help information)AT+RADD           (Query remote device address)AT+LADD            (Query self address)AT+IMME            (Query/Set Whether the device boot immediately)AT+WORK          (if device not working, start work, use with AT+IMME command)AT+TCON           (Query/Set Try to connect remote times)AT+TYPE             (Query/Set device work type,  transceiver mode or remote mode)AT+START          (Switch remote control mode to transceiver mode)AT+BUFF            (Query/Set How to use buffer data, Duing mode switching time)AT+FILT              (Query/Set device filter when device searching)AT+COD              (Query/Set Class of Device. eg: phone, headset etc.)

TI Just released their new second Bluetooth Lower Energy single-mode SoC IC, the CC2541. ICs and EMKs, the modules that plug into the CC2540 Development Kit are now also available.

The CC2541 is similar to existing TI CC2540, but there are some differences:

• Optimized TX power consumption. CC2541 draws 18.2 mA @ 0 dBm (14.3 mA when using TPS62730), compared to 27 mA @ 0 dBm for CC2540. Due to this optimization, maximum output power is 0 dBm for CC2541, compared with +4 dBm for CC2540.
• There is also a minor improvement in RX current; 17.9 mA versus 19.6 mA (14.7 mA versus 15.8 mA when using TPS62730).
• The USB interface has been removed on CC2541. It has been replaced by a hardware I2C interface.
• In addition to Bluetooth low energy/Bluetooth Smart, CC2541 supports proprietary radio communication at 2 Mbps, 1 Mbps, 500 kbps and 250 kbps.
• The CC2541 can be configured to be over-the-air compatible with CC2500/CC2510/CC2511 at 500 kbps and 250 kbps and with the 2.4 GHz RFICs from Nordic Semiconductor at 2 Mbps, 1 Mbps or 250 kbps the CC2540 only supported BLE.
• As long as you don’t use USB or I2C, the CC2540 and CC2541 are 100% pin-compatible, including using the same values for the RF matching components, so it is easy to move back and forth between the two.
• On the software side, the modules are 100% compatible, as the BLE stack masks some minor differences in the radio interface. The latest version of the BLE stack has full support for both CC2540 and CC2541.

If you are unsure whether to use CC2540 or CC2541, here are some points to consider:

• If you’re concerned with active power consumption, use CC2541, as it will save you 30% in TX and around 10% in RX.
• If you need +4 dBm output power, you should choose the CC2540.
• If you need a USB interface, you should choose the CC2540.
• If you need I2C, you should choose the CC2541.
• If you want to communicate using a proprietary protocol, you should choose the CC2541.
• If none of the above apply, it doesn’t matter which one you choose.
