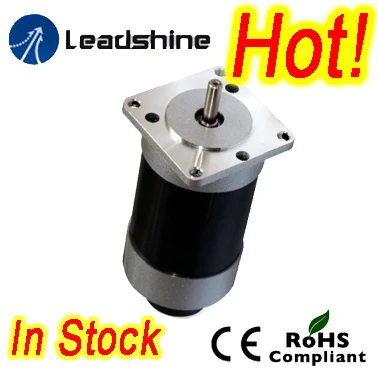

В наличии Leadshine BLM57130 Nema 23 180 Вт бесщеточный Серводвигатель со встроенным 4000 ppr

---

Notice:

We only supply genuine Leadshine servo motor drive with reasonable price, if your budget is limit, please contact our service man online and he she will recommend you the low price other supplier.

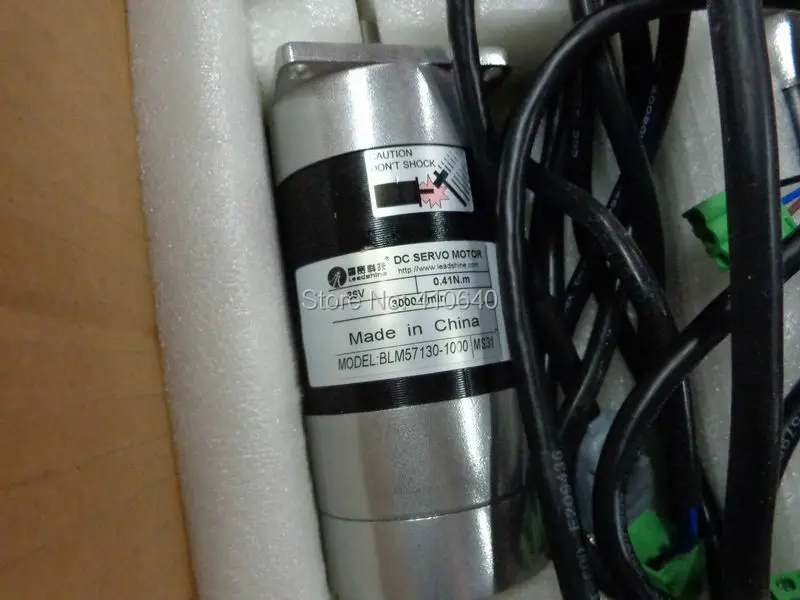

BLM57130 Brushless DC servo motor



Built with high quality materials, Leadshine BLM57130 is a 130W brushless DC servo motor at industrial quality.  The standard model is integrated with a 4,000 PPR (1000-line) incremental encoder. It can provide smooth movement with low noise and motor heating in your motion control system.   When driven by Leadshine ACS series servo drives, it can output the high torque you need at continuous speed from 1 rpm to 3000 rpm.  It is a flange mounted motor, and mounting is compatible with NEMA23 stepper motors. At the cost even lower than many stepper systems on the market, this solution is ideal to upgrade your system from steppers to servos, or from brushed DC servos to brushless servos. It can offer AC-servo-like performance, such as high speed, high precision, low motor noise and low heating performance, while at the cost of normal stepper systems.

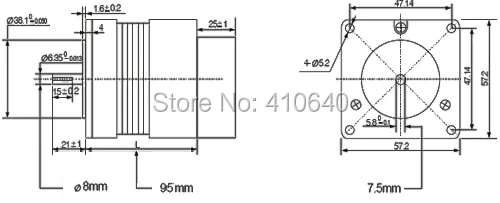

  Features: Brushless construction Reliable industrial quality NEMA23 frame size, 36 VDC rated voltage, 130W rated power 4000 CPR (1000-line) incremental encoder with A, B signals 0.41 N-m (58 oz-in) rated torque / 1.23 N-m (174 oz-in) peak 3000 RPM rated speed / 4000 RPM peak Standard cabling options for direct connection to the ACS series servo drives   Specification: Model: BLM57130-1000 Frame Size: NEMA 23 Shaft Size: 0.315-inch Continuous Torque: 58 Oz-In Peak Torque: 174 Oz-In Rated Power: 130 Watts Rated Speed: 3000 RPM Peak Speed: 4000 RPM Rated Voltage: 36 VDC Rated Current: 5.3 A Peak Current: 15.9 A Encoder Resolution: 4000 CPR Back EMF: 8.2 V/kRPM Torque Constant: 11.03 oz-in / A Inductance: 2.17 mH Resistance: 0.63 Ohm Rotor Inertia: 0.002450 oz-in-sec2 Pole Pairs: 2 Shaft Size: 0.315 Inch Winding connection: Delta Hall Sensor: 120 degree Radial Play: 0.025 mm Axial Play: 0.025 mm@460g Radial Load: 75N@20mm from the flange Axial Load: 15N Isolation Level: B Isolation resistance: 100M ohms Isolation Strength: 500VDC for one minute Length: 4.72 inches Weight: 2.2 lbs   Specifications In Table:   Mechanical Specifications (unit: mm):   Wiring:   Matching Drive:
