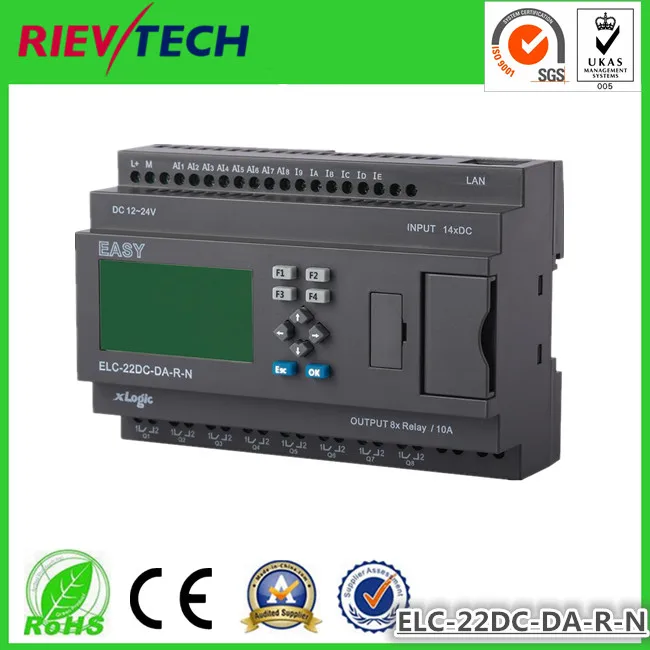

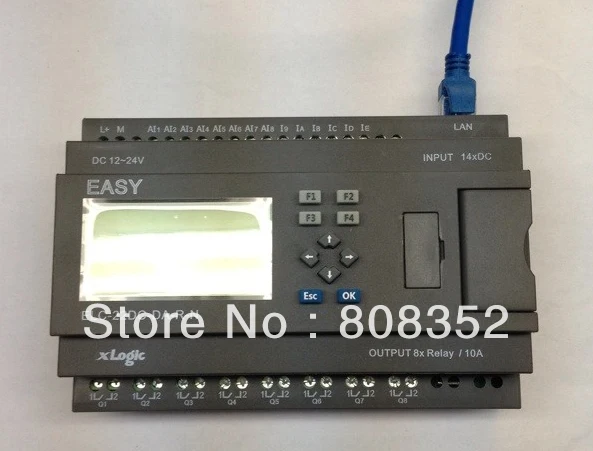

ELC-22DC-DA-R-N-HMI series overview

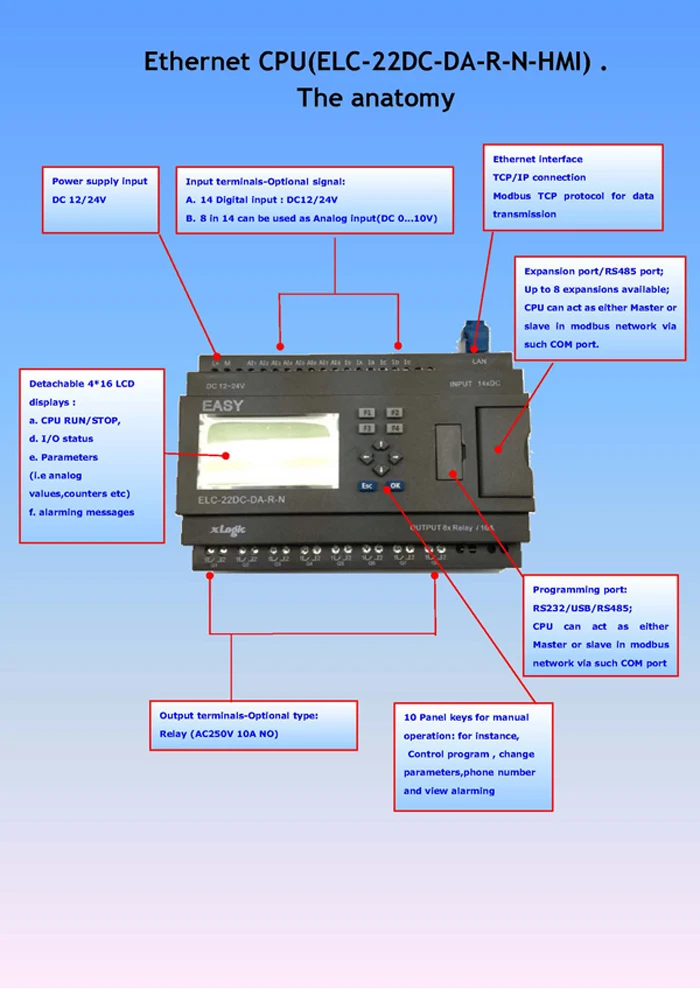

ELC-22DC-DA-R-N-HMI is built-in Ethernet port model, incorporating a good mix of digital and Analogue IO, Integrated High Speed inputs,clock with calendar, counters,timers, integrated keypad display, serial communications and an expansion port. Available in 12V/24VDC versions ;  Easy to configure with drag-and-drop function blocks using FREE xLogicSoft software.

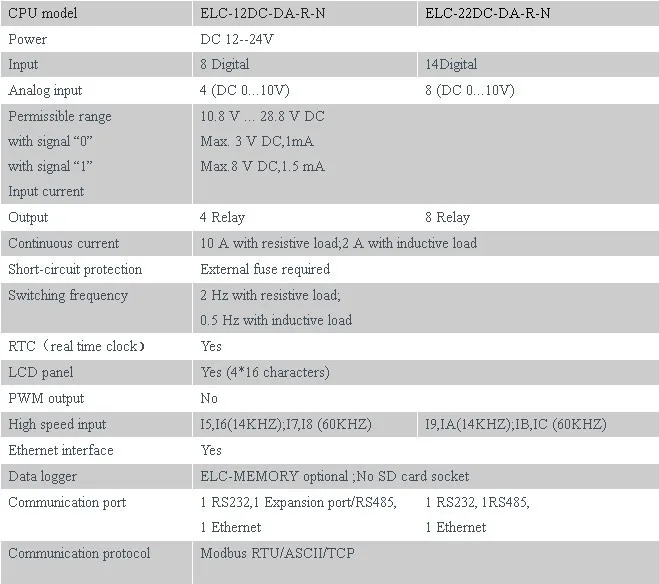

Specification:

 ELC-22DC-DA-R-N-HMI Series highlights at a glance:

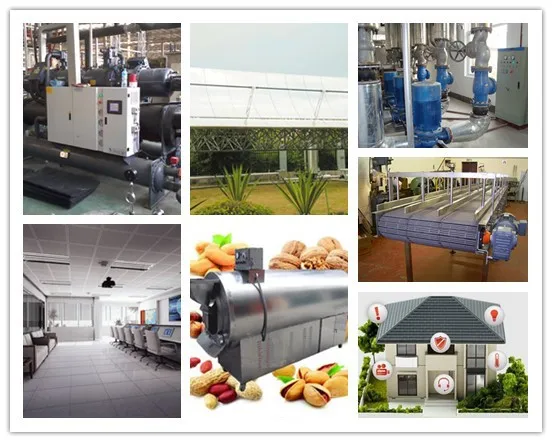

  *Remote control , monitoring & alarming via SMS . *Built-in Ethernet capability available . *Optional metal mounting plate offers mounting to the rear of the control panel door. *Modbus RTU/ASCII/TCP protocol supported. *Unit Size allows for DIN-rail mounting together with commonly used breakers in building automation applications.  *Powerful communication capability(1 RS232 port, 1 RS485 port and 1 LAN port) *It’s optional for xLogic to act as slave or master in certain Modbus communication network.    Area of application: Contributed to xLogic’s versatile features, The xLogic can be used in numerous applications:   Machine controls Motor, pump and valve controls, Air compressors Exhaust and filtering systemsWater-treatment plants,Woodworking machinery,Etching and purification plants. Transport facilities,Conveyor systems,Hoisting platforms,Elevators,Silo facilities,Livestock feed delivery,Operational monitoring systems, Access control, Vehicle control monitoring,Alarm systems,Level limit monitoring,Traffic light control systems,Baggage handling Residential and commercial building servicesInterior and exterior lighting control,Door/gate controlShutter, sun blind and awning controlIrrigation system control, Unique applicationsWind power systemsHarsh environmentsDisplay panels and traffic control signs ---------------------------------------------------------------------------------------------------------

Tips!

1.Ethernet interface configuration software is “ DeviceManager for Ethernet CPU”. 2.Programming software is eSmsConfig. 3.  Pleased to inform you that our micro plc is developed 100% by ourself ,and they are incompatible with any other brands plc's programming cable. so we strongly suggest you also purchase the programming cable when you purchase the CPU units,we have two types programming cables,one is   ELC-USB   cable,and another is   ELC-RS232   cable.Without programming cable, you can not set up connection/communication between PC and PLC, further, you naturally can not make programme via PC, and surely unable to download your programme to our PLC.
